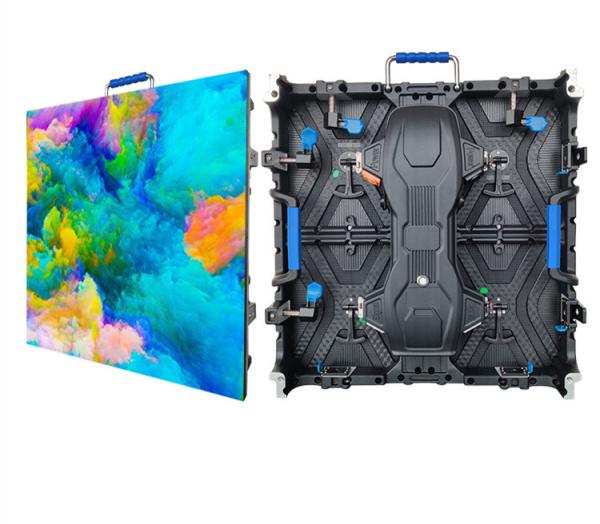

500x500mm P3.9 P4.8 Indoor Rental Full Color Led Display Panels 2880hz To 3840hz
LED Stage Backdrop Screen Other Features:
1.Electric leakage protection design with wooden floor Non-slip design
a.Led truck screen with anti-vibration, butterfly connector is more anti-vibration,
b.more stable current contact, less info loss,
c.more stable transmission function. Suitable for led screen truck.
2. Reliable design: connect coterminous led cabinet by connecting plate and locating pin.
| Indoor LED Stage Backdrop Screen specification |
| Pixel | 2.97mm | 3.91mm | 4.81mm |
| LED Encapsulation | SMD1515 | SMD2121 | SMD2121 |
| Brightness | 1100nit | 1100nit | 1100nit |
| Module Size(mm) | 250x250 | 250x250/ 250×500 | 250×500/250x250 |
| Cabinet Size | 500x500x80 | 500×1000×80/500x500x80 | 500×1000×80/500x500x80 |
| Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Scan Method | 1/14 Scan | 1/16 Scan | 1/13 Scan |
| Weight | 8Kg | 12.5Kg/ 8Kg | 12.5Kg/ 8Kg |
| Cabinet Resolution | 84x168/84x84dots | 256x128dots / 128x128dots | 104x208dots/104x104dots |
| Pixel Density | 112896Pixel/㎡ | 65536 Pixel/㎡ | 43264 Pixel/㎡ |
| Refresh Frequency | ≥3840Hz |
| Viewing Angle | 140/140 | 140/140 | 140/140 |
| Working Voltage | 110-220Volt/50/60hz | 110-220Volt/50/60hz | 110-220Volt/50/60hz |
| IP waterproof | IP43 | IP43 | IP43 |
| Optimal Viewing Distance | ≥ 2m | ≥ 3m | ≥ 4m |
| Working Temperature | -20~45 ℃ | - 20~40℃ | -20~45 ℃ |
Key benefit:
Stable performance,wide applicability, high brightness, high protection grade,superb performance/price ratio.
1.The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather conditions.
2.High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
3.Superb performance/price ratio offers you both top notch quality and reasonable price, maximizing the value of your investment.
Q: Can the LED display screen display long time in one kind of color?
Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.
Q: How long can the LED display screen display?
LED display at least rest 2 hours a day. Normally turn on the screen at least twice a week or more (Especially in the rainy season it is necessary to turn on the display every day). And it maintains more than 2 hours every time.
Q: Should the LED display screen do regular overhaul
LED display requires regular inspection to check circuit damage. If it does not work, change it in time. If circuit damages, it should be repaired or replaced.
Q: How is the safeguard requirement of LED display screen?
Users must ensure safety while installing Led display. The factory only offers products and reference programs of frame fixation.
